How This Calculator Works

This calculator measures your change-of-direction speed using the 5-10-5 Pro Agility Shuttle — also called the 20-yard shuttle or short shuttle, and one of the most widely used field tests of lateral acceleration, deceleration, and reacceleration. You enter your total time in seconds to complete the course, and the calculator classifies your result against published 5-10-5 benchmarks, then computes your category, your Agility Age, and an estimated percentile for your age and sex.

One thing to keep in mind throughout: for the 5-10-5, a lower time is better. Every part of the calculator — the tiers, the table, the charts, the percentile — is built around faster being better, which is the opposite of a reps-based test where more is better.

Step 1: Enter Your Details

The calculator needs three inputs: your sex, your age, and your 5-10-5 time.

• Sex5-10-5 norms are reported separately for men and women because of biological differences in lower-body power, sprint speed, and strength-to-weight ratio that directly affect change-of-direction speed. — selects which normative table you are compared against.
• Age — determines the performance standards expected for your stage of life. The calculator covers ages 18 to 75.
• 5-10-5 Time — your total time, in seconds, from the start signal until you cross back through the start/finish line. This single time is your score; there is no separate technique setting.

The Test Protocol

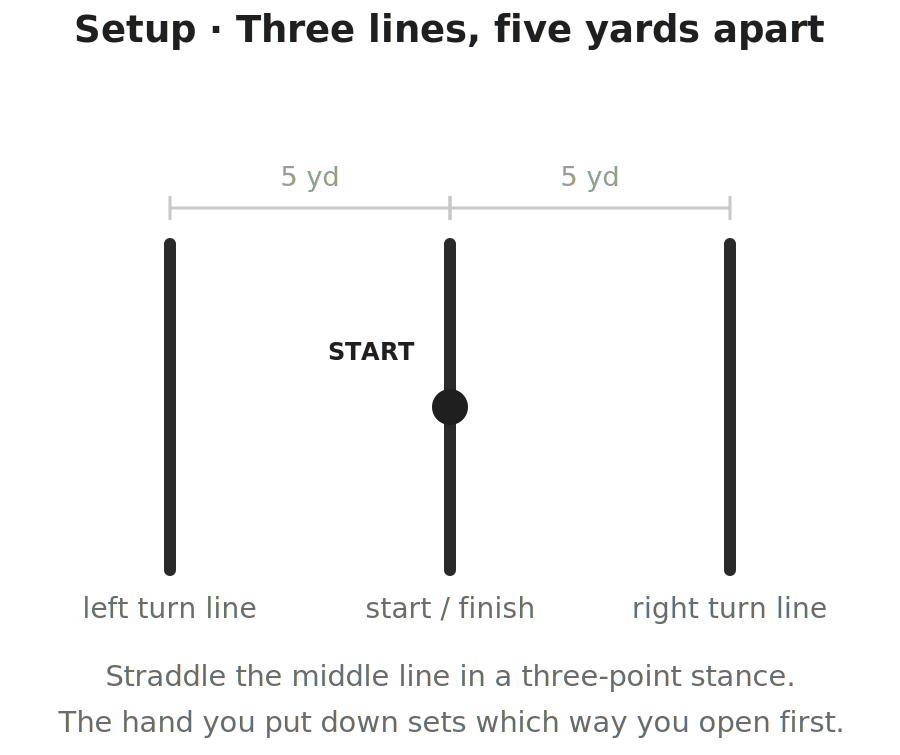

For results that match the benchmarks, the test must be performed the same way the benchmark data was collected. The 5-10-5 uses three lines (or cone channels) set 5 yards apart in a straight line, with the athlete starting at the middle line:

• Stance: Straddle the center line in a three-point stance. The hand you place on the ground sets your first direction — right hand down means you open to the right first, and vice versa.

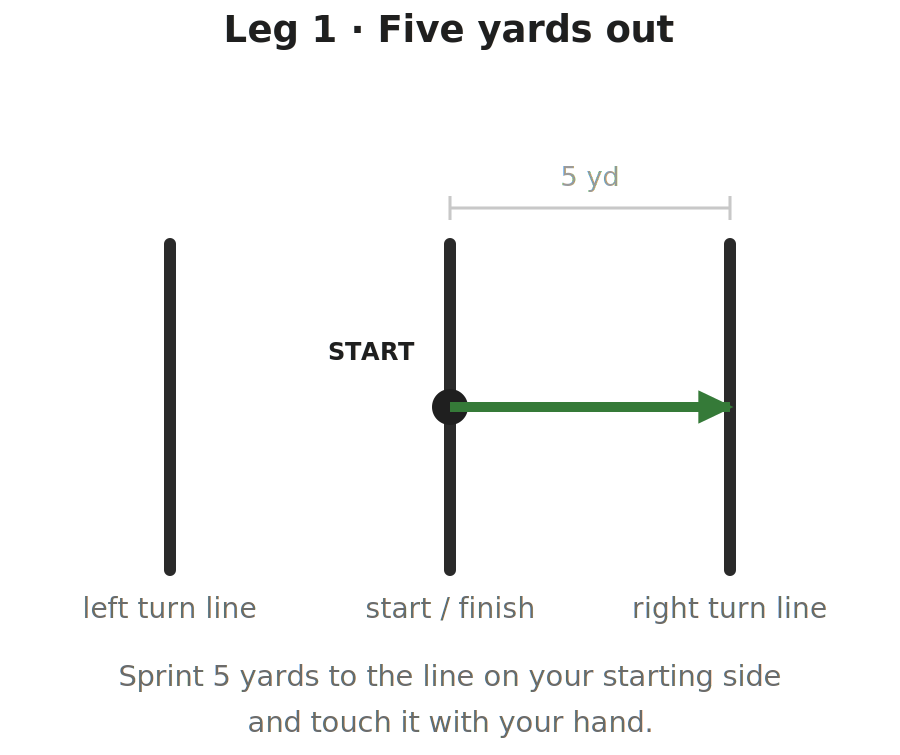

• First 5 yards: On the signal, sprint 5 yards to the line on your starting side and touch it with your hand.

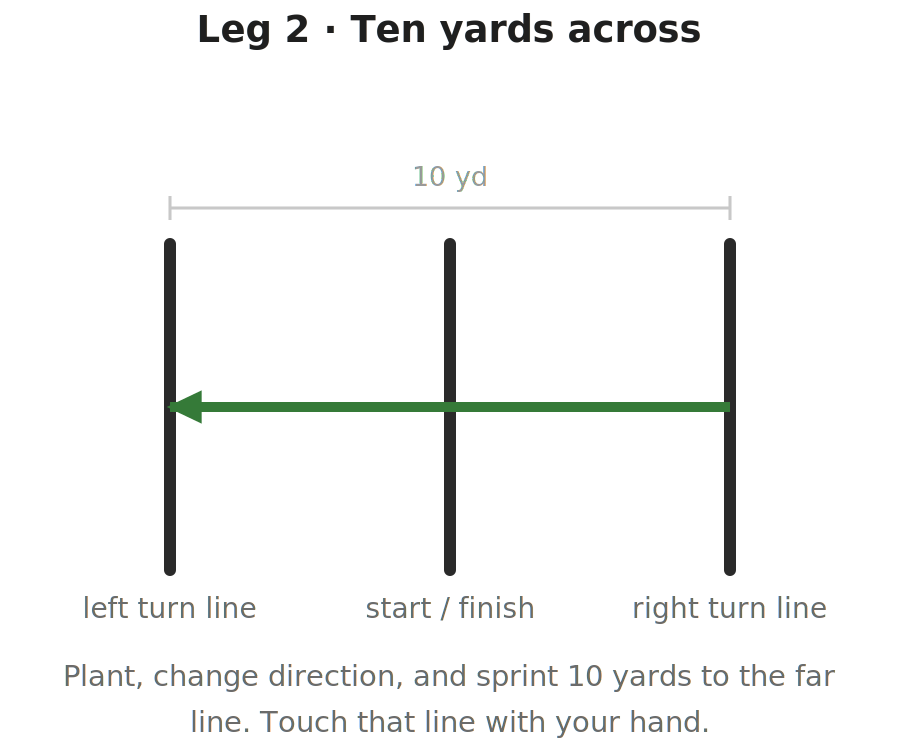

• Middle 10 yards: Plant, change direction, and sprint 10 yards across to the far line; touch it with your hand.

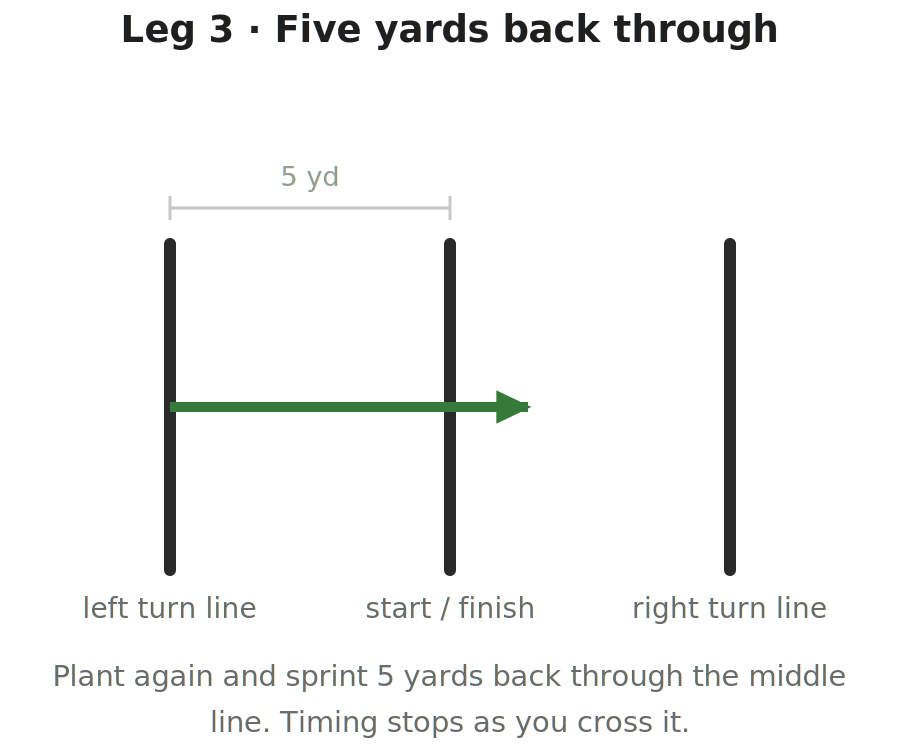

• Final 5 yards: Plant, change direction again, and sprint 5 yards back through the center start/finish line. Timing stops as you cross it.

The course covers 20 yards total with two direction changes. A trial is invalidated and retested if the athlete fails to touch a turn line, slips on the plant, or short-cuts a turn. Athletes typically run the test turning in each direction and record the best valid trial to the nearest 0.01 seconds. Equipment is simple — cones or lines on a measured surface and a timer — but surface and footwear should be kept consistent between tests.

How Your Category Is Determined

The published 5-10-5 reference data is commonly organized into four named bands for each sex and level (Average, Good, Advanced, Elite). Those bands map cleanly onto the five-tier scale used across this platform:

Four of the five tiers sit directly on the published Average, Good, Advanced, and Elite cut points; the fifth tier, Low, is simply everything slower than the Average band — no artificial subdivision is needed. The young-adult (college, ages 18–22) reference thresholds the calculator uses are:

Notice the consistent gap between the sexes: across every tier, the women's cutoff sits roughly 0.45 seconds (about 9–10%) slower than the men's. That difference is not a guessed offset — the male and female tables are anchored separately to laser-timed data, and the gap that emerges is corroborated by independent research, including a Division I women's volleyball mean of ~4.9s that lands exactly on the female Advanced/Intermediate boundary.

Your time is compared against the cutoff for each tier at your age and sex, and you are placed in the highest (fastest) tier you qualify for — that is, the best tier whose time ceiling you match or beat:

• Low — slower than the typical range for your group. Below the published "Average" band. A clear starting point with substantial room for improvement.
• Intermediate — around the typical-athlete average. Corresponds to "Average." Typical of an active or developing athlete at this level.
• Advanced — above average for your group. Corresponds to "Good." Reflects consistent change-of-direction and conditioning work.
• Superior — well above average. Corresponds to "Advanced." Characteristic of well-conditioned, competitive athletes.
• Elite — top tier for your age and sex. Corresponds to "Elite" — the top few percent. Combine-caliber change-of-direction speed.

The Smooth Age Model

The 5-10-5 is tested overwhelmingly on young athletes — high school through professional — so its firmest reference points sit between ages 18 and 30. Change-of-direction speed does not stay flat across life: it peaks in the early-to-mid twenties, holds through about age 30, then slows gradually and continuously, much like sprint speed and power.

To model this honestly, the calculator anchorsAnchor ages are 18, 22, 30, 40, 50, 60, and 70. The 18–30 anchors carry the laser-timed published benchmarks (with a slight early-20s peak); the 40+ anchors carry the modeled age-related slowing. the published benchmarks at ages 18, 22, and 30, adds further anchor ages at 40, 50, 60, and 70, then interpolates a smooth value for every age in between:

Ages beyond 70 are extrapolated by continuing the slowing trend out to 75. The ages 18–30 are anchored to laser-timed combine and published normative data; the values from 40 onward are modeled estimates derived from published change-of-direction decline rates, not numbers measured directly at each age.

Reading the Two Charts

The calculator draws two complementary visuals, and they answer different questions.

• Standards Across Age plots average speedSpeed = the 20-yard course distance ÷ your time, in yards per second. It is the average pace over the whole shuttle, not a top speed. rather than raw time. Time is converted to speed (20 yards ÷ your time) for one reason: so that a faster performance sits higher on the chart. That puts Elite at the top and Low at the bottom and lets the chart read like any familiar "higher is better" graph. The five shaded bands are your tiers at every age; the dot marks your age and speed; the band the dot sits in is your level. The bands rise slightly into the early twenties, then ease downward with age. Your tooltip shows both your speed and your real time.
• Where You Fall in Your Age Group is a modeled distributionA normal (bell) curve fitted to the same tier percentiles used elsewhere in the calculator. Real 5-10-5 times are mildly right-skewed, so the curve is an illustrative approximation, not a measured population. of 5-10-5 times for your exact age and sex, shaded into the five tiers, with a dashed line and dot marking where you fall. Slower times are on the left and faster times on the right, so the tiers run Low → Elite across the curve. The red Low region looks large and the gold Elite region small on purpose: that honestly reflects that Low covers roughly the bottom third of people while Elite is only the top few percent.

How to Read the Standards Table

The standards table lists one row for every five years of age, and one column for each of the five levels, running Low → Elite from left to right. The header labels are color-coded to match the chart bands — on a phone the headers shorten to single letters (L · I · A · S · E); tap any header to see its full name.

• Each cell is a single number — the time ceiling. It shows the slowest time still allowed for that level at that age. If your time equals or beats it (you are that fast or faster), you have reached that level.
• The Low column is the exception.Low has no ceiling — it covers every time slower than the Intermediate cutoff. The cell shows ">" followed by that cutoff. Because Low covers everything slower than the Intermediate cutoff, its cell shows a "greater-than" value rather than a target you aim to hit.
• Your row and level are highlighted. The row closest to your age is shaded, and within it, the cell for your achieved level is filled with that tier's color.

Agility Age

Your Agility AgeThe age at which your time would be considered typical (around-median) performance. Conceptually similar to "fitness age" used in cardiovascular testing. is the age at which your time would be average. If you post a faster time than the typical person of your actual age, your Agility Age is younger; if slower, it is older.

The calculator scans the smooth age model for the age whose median performance — the middle of the Intermediate band — equals your time, giving you an intuitive single-number summary of where your change-of-direction speed sits on the aging curve.

Percentile Estimate

The percentile estimates the share of people in your age-and-sex group you are faster than. Because the reference data provides category boundaries rather than a full distribution, the percentile is approximated by mapping each tier cutoff to its corresponding percentile and interpolating between them:

Your time is placed along this scale to produce an approximate percentile. It is a reasonable guide, not a precise population statistic.

How Age and Sex Change Your Score

These two inputs do not just describe you — each one directly changes the numbers your result is measured against:

• Age changes the thresholds. The calculator recomputes the time cutoff for every tier at your exact age. Because standards ease past the late twenties, the same time is judged against more forgiving cutoffs as you get older — so an identical time can place you in a higher tier at 55 than it would at 25. This is why the entire standards table and chart shift across age.
• Sex selects a different table. Choosing male or female swaps in an entirely separate set of normative values, separated by the data-grounded ~0.45s gap described above. The same time is scored against different benchmarks depending on which table applies.

Why Change-of-Direction Speed Matters

The 5-10-5 is a benchmark for planned change-of-direction speed — the capacity to accelerate, decelerate hard, plant, and reaccelerate while keeping body control. Those qualities underpin performance in court and field sports and in tactical occupations, and they draw on leg power and sprint speed as much as on footwork. The test has been a staple of NFL, NHL, and MLS combine batteries since the early 2000s precisely because it discriminates these qualities well over a short, repeatable distance.

Important context, and a point the literature is emphatic about: despite the "Pro Agility" name, the 5-10-5 is a pre-planned drill — you know the course in advance. It therefore measures change-of-direction speed, the physical ability to change direction quickly, rather than reactive agility, which is the ability to read and respond to an unpredictable stimulus. A great 5-10-5 time reflects strong movement mechanics and lower-body speed, but it is one piece of the broader agility picture, not the whole of it.

Data Sources and Methodology

The benchmarks and methods in this calculator are built from established testing references and combine datasets:

• Harman, E., Garhammer, J., & Pandorf, C. (2000). Administration, Scoring, and Interpretation of Selected Tests. In Essentials of Strength Training and Conditioning (2nd ed.) — the standard 5-10-5 protocol.
• Haff, G.G., & Triplett, N.T. (2015). Essentials of Strength Training and Conditioning (4th ed.). Human Kinetics — normative change-of-direction reference data.
• McKay, B.D., et al. (2020). Normative Reference Values for High School-Aged American Football Players: Pro-Agility Drill and 40-Yard Dash. Journal of Strength and Conditioning Research, 34(4), 1184–1187 — large-sample youth normative values.
• Lockie, R.G., et al. (2020). Lower-Body Power, Linear Speed, and Change-of-Direction Speed in Division I Collegiate Women's Volleyball Players. Journal of Human Kinetics, 75, 223–233 — female collegiate corroboration (~4.9s mean).
• McClelland, E.L., & Weyand, P.G. (2022). Sex Differences in Human Running Performance: Smaller Gaps at Shorter Distances? Journal of Applied Physiology, 133(4), 876–885 — context for the male–female performance gap.
• Laser-timed combine compilations (NFL/MLS combine databases and aggregated coaching benchmarks) — the electronic-timing sport-and-sex reference ranges used to anchor the young-adult tiers.

A note on the benchmarks: the 5-10-5's firmly published references cluster in the 18–30 athletic age range. Some female and older-age values in the source compilations are themselves synthesized from multiple datasets and sex-difference research rather than measured directly. The per-age numbers from 40 onward are modeled by extrapolation from published decline trends. Treat the per-age standards as a sensible, transparent benchmark — anchored to laser-timed published data through age 30, and modeled, but clearly labeled as such, beyond it.

Limitations and Important Caveats

This calculator provides an estimate, not a clinical measurement. Several factors affect how precisely it reflects your true change-of-direction speed:

• Timing method.Laser gates are the standard the benchmarks are built on. Hand timing runs 0.15–0.25s faster, enough to shift you a full tier. Standardize the method before comparing or tracking. The benchmarks assume electronic timing. A hand-timed result runs 0.15–0.25s fast and will overstate your tier unless you adjust for it.
• Synthesized and modeled values. Ages 18–30 are anchored to published laser-timed data; the female and older-age figures lean partly on synthesized norms, and ages 40+ are extrapolated from decline trends. These are reasonable estimates, not directly measured figures at every age.
• Approximate percentile. The percentile is mapped from category boundaries rather than a complete population distribution, so it should be read as a guide, not an exact statistic.
• Setup and surface variability.Line spacing, the testing surface (hardwood and indoor turf give the cleanest times), footwear, and whether each turn line is actually touched all change the time. Standardize them to make retests meaningful. Non-standard setups bias the result. Keep the course, surface, and footwear consistent across tests.
• The speed chart shows average pace. Standards Across Age plots the average speed over the full 20-yard course, not your top speed at any instant.
• The distribution curve is modeled. The age-group bell curve is a normal approximation fitted to the tier percentiles; real 5-10-5 times are slightly skewed, so it is illustrative rather than an exact population.
• Single-test snapshot. Fatigue, warm-up, time of day, and recent training all affect a single trial. For tracking progress, retest under the same conditions every few weeks and take the best of two or three valid trials.
• Planned speed only. The 5-10-5 does not capture reactive agility — your ability to respond to an unpredictable cue.

Disclaimer:
This calculator provides an estimate based on established benchmark data and a modeled age curve. Real change-of-direction speed depends on training history, movement mechanics, body proportions, recovery, and individual variation. The 5-10-5 involves maximal acceleration, hard deceleration, and rapid plant-and-cut direction changes that place significant stress on the knees, ankles, and hips. Always warm up thoroughly beforehand and stop immediately if you experience pain, dizziness, or unusual discomfort. This tool is for general informational purposes only and should not be considered medical, fitness, or training advice. Consult a healthcare provider before beginning a new exercise or testing program, especially if you have a pre-existing condition, are over the age of 45, or have been sedentary for an extended period.
